Double NP system performance reliable function complete highly  effective rate economy equipment

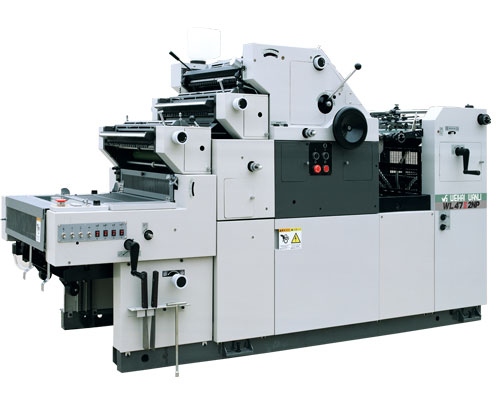

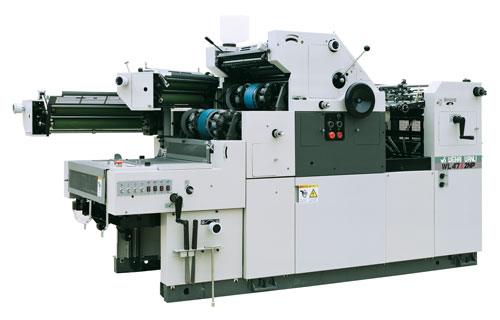

WL47Ⅱ2NP

    This type in the WL4712NPD foundation, realized is more perfect Ink  Roller center has 3 for ink system,14 Ink  Roller, the greatest limit guaranteed  the full version printed the ink quantity supply and the inking  effect, guaranteed completed the high accuracy the printing quality.

Technical parameter:

	WL47II2NP
Max. printing area	454x345mm
Max. paper size	470x365mm
Min. paper size	90x140mm
Paper size	28-250g/m2
Ink　 Rollers	26
Dampening　Rollers	4x1
Register	Rolls wheeled pulls the gauge
Printing speed	3000－10000 piece/hour
Electric motor	Main motor power 1.5kw, Air Pump's motor 0.4kw
Power source	Single-phase 220V/50Hz
Mechanical size (mm)	2480(L)x1030(W)x1189(H)
Net  weight	770kg
