Product Detail :

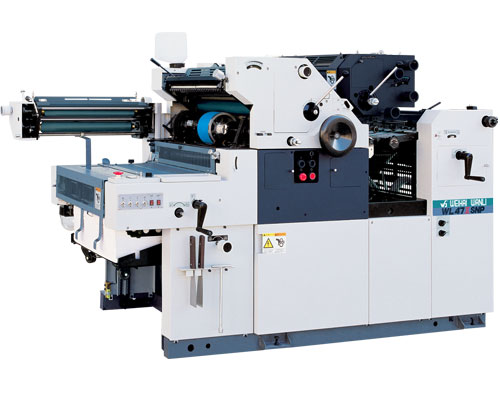

Product Name : WL47IISNP
Model specification: WL47IISNP
Product Remark :



The bill commercial work prints the most suitable double color  function offset printing machine

WL47IISNP

 In has in the WL47IIS function foundation, supplements the multi-  functions NP system.

 The collection prints the double color, hits the number to one body,  economical;

 For ink quantity sufficient multi- functions offset printing machine.

Technical parameter:

  WL47IISNP
Max. printing area 454x345mm
Max. paper size 470x365mm
Min. paper size 90x140mm
Paper size 28-250g/m2
Ink  Rollers 31
Dampening Rollers 4x2
Register Rolls wheeled pulls the gauge
Printing speed 3000-10000 piece/hour
Electric motor Main motor power 1.5kw, Air Pump's motor 0.4kw
Power source Single-phase 220V/50Hz
Mechanical size (mm)  2089(L)x1030(W)x1189(H)
Net weight  720kg
